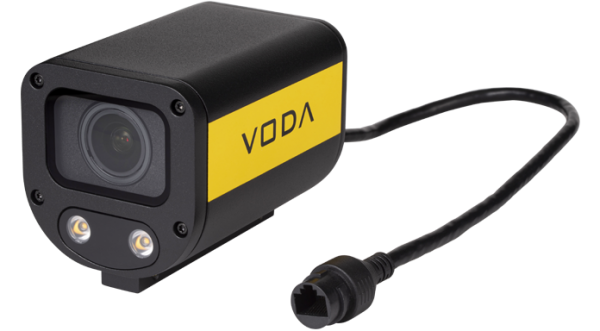

VMR-S230W
페이지 정보
작성자 voda 댓글댓글 0건 조회조회 117회 작성일작성일 25-08-27 10:23본문
Main Features of the Camera
Optics
-Day/Night Function
-IR / 4 LED Lights
-Up to 120dB Optical WDR Support
-2D/3DDNR(Digital Noise Reduction)
Compression
-H.265,H.264,MJPEG
-Triple Stream
-ROI(RegionofInterest)
-9:16 Corridor Mode
Network
-ONVIF Compliant
Structure
-PoE Power Supply Support
Data Sheet
Image Sensor
1/2.8 CMOS
Effective Pixels
1985(H)x1105(V), 2MP
Lens Type
Auto 2.8 ~ 12mm
Illumination
Dual-light (LED+IR)
Day/Night Mode
Auto-light, starlight, searchlight, infrared mode
Shutter
Rolling
Shutter Speed
Auto(1/30~1/30000)
FPS
30fps
PLC Integration
Mitsubishi, Siemens (pre/post-event recording on PLC alarm)
Camera Position Detection
Automatic alarm for camera misalignment based on preset angle
Video Compression Format
H.264 MP / H.265 HP / MJPEG
Protocol
TCP/IP, HTTP, RTP, RTSP, UDP, DHCP, FTP, SMTP, NTP, ICMP
SDK Support
API, Onvif Profile S Compliant
Operating Temperature/Humidity
-10 ℃~+50 ℃/ 90%/ RH max
Basic Detection
Motion detection, ultra motion detection, tamper alarm, line crossing, intrusion detection
Power Supply
DC 12V, PoE (IEEE 802.3af)
Certifications
CE-EMC, CE LVD, CE-RoHS, FCC, CB, UL/CUL
Protection
IP67 (waterproof & dustproof)
Dimensions (W×H)
104mm/98mm
File
- VMR-S230W.pdf (770.4K) 3 Download | DATE : 2025-09-22 15:59:23
