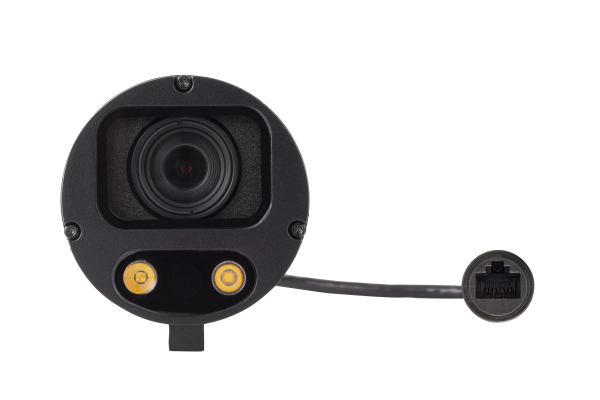

Main Features of the Camera
- High-definition Image: 2MP, 1/2.8" CMOS Sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB True WDR Technology for clear images even in strong light
- 9:16 Corridor Mode Support
- Smart IR, up to 30m (98ft)
- Warm Light, up to 30m (98ft)
- IP67 Protection
- PoE Support
Data Sheet
Image Sensor
1/2.8 CMOS
Effective Pixels
1985(H)x1105(V), 2MP
Lens Type
Auto 5.0mm~50mm / 2.8mm ~ 12mm
Illumination
Dual-light (LED+IR)
Day/Night Mode
Auto-light, starlight, searchlight, infrared mode
Shutter
Rolling
Shutter Speed
Auto(1/30~1/30000)
FPS
30fps
PLC Integration
Mitsubishi, Siemens (pre/post-event recording on PLC alarm)
Camera Position Detection
Automatic alarm for camera misalignment based on preset angle
Video Compression Format
H.264 MP / H.265 HP / MJPEG
Protocol
TCP/IP, HTTP, RTP, RTSP, UDP, DHCP, FTP, SMTP, NTP, ICMP
SDK Support
API, Onvif Profile S Compliant
Operating Temperature/Humidity
-10 ℃~+50 ℃/ 90%/ RH max
Basic Detection
Motion detection, ultra motion detection, tamper alarm, line crossing, intrusion detection
Power Supply
DC 12V, PoE (IEEE 802.3af)
Certifications
CE-EMC, CE LVD, CE-RoHS, FCC, CB, UL/CUL
Protection
IP67 (waterproof & dustproof)
Dimensions (W×H)
107mm / 97mm
